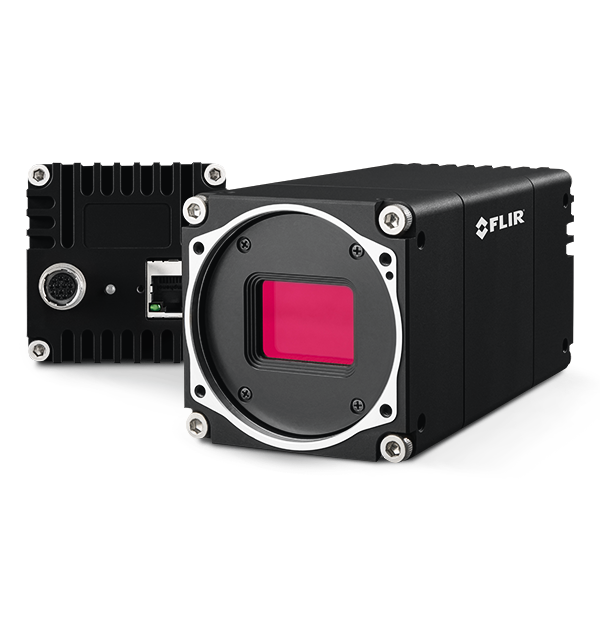

The award-winning Oryx 10GigE camera family allows systems designers to take advantage of the latest sensors by supporting transfer speeds of up to 10 Gbit/s enabling capture of 4K resolution, 12-bit images at over 60 FPS. Oryx features include IEEE1588 clock synchronization and full compatibility with several popular third-party software supporting GigE Vision. Oryx’s 10GBASE-T interface is a proven and widely deployed standard that provides reliable image transfer at cable lengths over 50 meters on inexpensive CAT6A, and up to 30 meters on CAT5e.
Key Specs
- Megapixels
- Frame Rate
- Sensor
- 24.6 MP
- 44 FPS
- Sony IMX530
High Speed 10GigE Interface
10 Gbit/s transfer speed supports 4K60 (12-bit). Long cable lengths supporting CAT6A and CAT5e cables.
Reliability & Simplicity
Large 10GBASE-T install base supports a favorable consumer and industrial ecosystems (Full GigE Vision compatibility).
Flexibility for Integrators
IEEE1588 Clock Synchronization for precise timing across multiple devices - learn more. Color Correction Matrix, Gamma, Saturation and Sharpness reduce host-side processing requirements.
Specifications
- Part Number
- ORX-10G-245S8C
- Resolution
- 5320 x 4600
- Megapixels
- 24.6
- Max Frame Rate Standard
- 44
- Sensor Model
- Sony IMX530
- Pixel Size
- 2.74
- Sensor Type
- CMOS
- Sensor Format
- 1.2"
- Shutter type
- Global shutter
- Spectrum
- Color
- Optical Filter
- IR cut-off (670 nm)
- Lens Mount
- Sold separately
- Synchronization
- Software trigger, hardware trigger, action command
- Data Interface
- Gigabit Ethernet 10 Gbps / 1 Gbps
Media gallery
Resources & Support
Application Note
How to build your own stereo vision with Teledyne FLIR machine vision cameras.
Learn more
You must be logged in to download software or firmware. Please sign in or create an account here.
Spinnaker SDK All Versions for Download
ORX-10G-245S8 Package for 2012.0.37.x Firmware
ORX-10G-245S8 Camera Reference (Release Notes, Specs, EMVA, Dimensions, Features)
ORX-10G-245S8 Datasheet
Oryx 10GigE Getting Started Manual
Oryx 10GigE Camera Installation Guide
Oryx CAD Drawings - Large Case
ORX-10G-245S8 Technical Reference
ORX-10G-245S8 EMVA Imaging Performance
