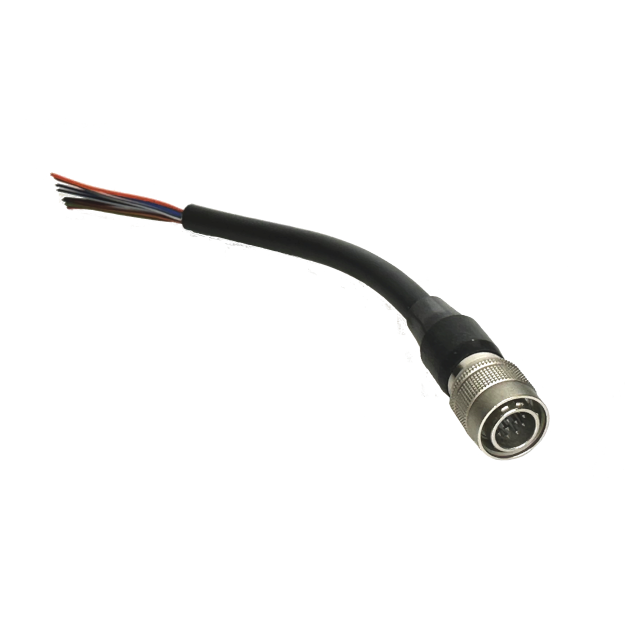

GPIO Cables with 12-pin Hirose HR10 Circular Connector
General Specifications
| Number of pins | 12 |
|---|---|
| Connector Type | Hirose HR10 Circular Connector (HR10A-10P-12P) |
| Length | 0.1 meter and 4.5 meters |
| Cable Diameter | 7.0 mm |
L = 0.1 meter and 4.5 meters
1 = UL20276 24AWG*12C+FAB 16*5/0.10 OD: 7.0 mm PVC Jacket, black
2 = Hirose 12 pin circular connector solder type
| Pin | Color | Oryx | |
| 1 | Black | Camera Power Ground | |
| 2 | White | Camera Power Input | |
| 3 | Red | Opto-isolated Output | |
| 4 | Green | Opto-isolated Output | |
| 5 | Orange | Opto-isolated Input | |
| 6 | Blue | Opto-isolated Input | |
| 7 | White / | Black | TTL Input / Output |
| 8 | Red / | Black | TTL Input / Output |
| 9 | Green / | Black | Camera Power Ground |
| 10 | Orange / | Black | Camera Power Input |
| 11 | Blue / | Black | Camera Power Output |
| 12 | Black / | White | Opto-isolated Ground |
Model Finder
| Product | Status | Compare | Buy |
|---|---|---|---|
Hirose HR10 GPIO Cable, 12-pin, 0.1 mACC-01-3001 |
Request Info |
|
|
Hirose HR10 GPIO Cable, 12-pin, 4.5 mACC-01-3014 |
Request Info |
|
Resources & Support
Below are assets shared by all models of this product family.
For model-specific assets, select an option in the Model Finder above.
ACC-01-3001 and ACC-01-3014 Datasheet
ACC-01-3001-2D-Drawing
ACC-01-3014-2D-Drawing
PCN-2023-004 GPIO Cable Change
