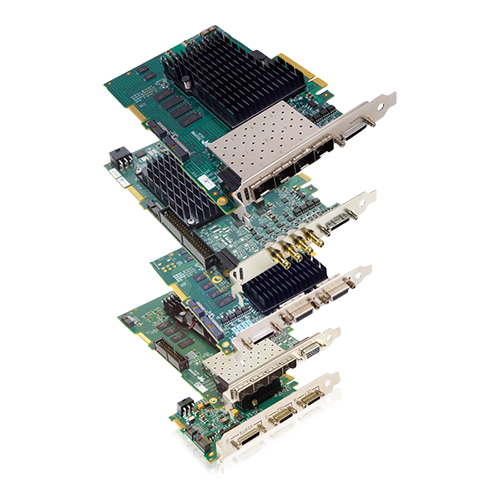

Xtium2 Family
By enabling maximum sustained throughput and ready-to-use image data, the Xtium2 series minimizes CPU usage and improves processing times for the host applications. In addition, the Xtium2 series offers enhanced memory architecture to handle area and line scan, monochrome and color cameras. The Xtium2 series offers high performance frame grabbers for Camera Link, Camera Link HS and CoaXPress interface standards.
Introducing Xtium2 PCIe Gen3 Series
The Xtium2 series leverages the PCIe Gen3 x8 platform to deliver high- speed image transfers to host memory without CPU overhead. The Xtium2 series models are available for Camera Link HS® (AOC and SFP+), CoaXpress® (CXP12 and CXP6), and Camera Link® cameras.
Key Features
- Long cable lengths at maximum image acquisition rates
- Data forwarding rate for distributed image processing
- Fully supported by Sapera Vision Software SDKs
Model Finder
| Product | Bits Per Pixel | Camera Interface | Host Interface | Frame Buffer | Data Link Speed | Status | Compare |
|---|---|---|---|---|---|---|---|
Xtium2-CL MX4OR-A4C0-XMX00 |
Mono: 8, 10, or 12-bit/pixel RGB: 8, 10 or 12-bit/pixel/color Bayer: 8, 10 and 12-bit/pixel Bicolor (RG,BG): 8-bit/color (line scan) |
Camera Link | PCIe Gen3 x 4 slot | 1 GB for Images (shared with processing functions) | 20 - 85 MHz | In Production Request Info |
|
Xtium2-CLHS FX8OR-A8S0-FX840 |
Mono: 8, 10, 12-bit/pixel RGB: 8-bit/pixel/color (no alignment) |
Camera Link HS | PCIe Gen3 x 8 slot | 512 MB for Images (shared with processing functions) | In Production Request Info |
|
|
Xtium2-CLHS FX8 LCOR-A8S0-FX820 |
Mono: 8, 10, 12-bit/pixel RGB: 8-bit/pixel/color (no alignment) |
Camera Link HS | PCIe Gen3 x 8 slot | 512 MB for Images (shared with processing functions) | In Production Request Info |
|
|
Xtium2-CLHS PX8OR-A8S0-PX870 |
Mono: 8, 10, 12-bit/pixel RGB: 8 or 12-bit/pixel/color (no alignment) |
Camera Link HS | PCIe Gen3 x 8 slot | 512 MB for Images (shared with processing functions) | In Production Request Info |
|
|
Xtium2-CLHS PX8 HROR-A8S0-HX870 |
Mono: 8, 10, 12-bit/pixel RGB: 8 or 12-bit/pixel/color (RGB color aligned on planes) |
Camera Link HS | PCIe Gen3 x 8 slot | 512 MB for Images (shared with processing functions) | In Production Request Info |
|
|
Xtium2-CLHS PX8 LCOR-A8S0-PX840 |
Mono: 8, 10, 12-bit/pixel RGB: 8-bit/pixel/color (no alignment) |
Camera Link HS | PCIe Gen3 x 8 slot | 512 MB for Images (shared with processing functions) | In Production Request Info |
|
|
Xtium2-CXP PX8 Single/Dual/QuadOR-A8X0-XPX |
Mono: 8, 10, 12, 14 and 16-bit RGB: 8, 10 or 12-bit/pixel/color Bayer: 8, 10 and 12-bit/pixel |
CoaXPress | PCIe Gen3 x 8 slot | 2 GB for Images (shared with processing functions) | In Production Request Info |
|
|
Xtium2-CXP6 PX8 QuadOR-A8X6-XPX40 |
Mono: 8, 10, 12, 14 and 16-bit RGB: 8, 10 or 12-bit/pixel/color Bayer: 8, 10 and 12-bit/pixel |
CoaXPress | PCIe Gen3 x 8 slot | 2 GB for Images (shared with processing functions) | In Production Request Info |
|
|
Xtium2-XGV DualOR-A8G0-PXF20 |
Mono: 8, 10, 12, 14 and 16-bit RGB: 8, 10 or 12-bit/pixel/color Bayer: 8, 10 and 12-bit/pixel |
GigE Vision | PCIe Gen3 x 8 slot | 2 GB for Images (shared with processing functions) | In Production Request Info |
|
|
Xtium2-XGV QuadOR-A8G0-PXF40 |
Mono: 8, 10, 12, 14 and 16-bit RGB: 8, 10 or 12-bit/pixel/color Bayer: 8, 10 and 12-bit/pixel |
GigE Vision | PCIe Gen3 x 8 slot | 4 GB for Images (shared with processing functions) | In Production Request Info |
|
Media gallery
Resources & Support
Below are assets shared by all models of this product family.
For model-specific assets, select an option in the Model Finder above.
Machine Vision Brochure
