Z-Trak Express

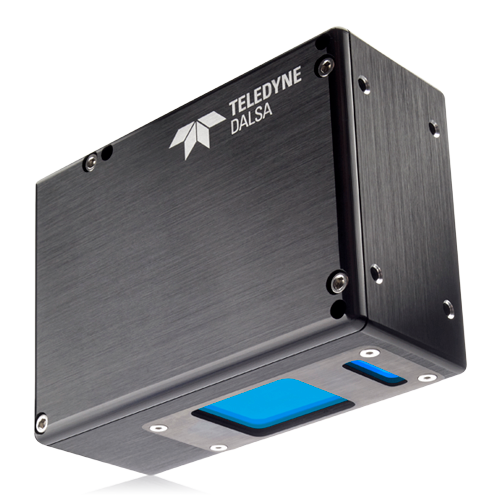

Introducing the Z-Trak™ Express 1K5 3D Laser Profiler

The Z-Trak™ Express 1K5 series represents the latest innovation in 3D measurement and inspection technology from Teledyne DALSA. Engineered for cost-effective, in-line 3D measurement, the Z-Trak Xpress 1K5 sets a new standard with its high-speed inspection capabilities and real-time processing. Achieving a maximum profile rate of 5,000 profiles per second across at full measurement range, the Z-Trak Express 1K5 is perfectly suited for various industries, including:

• Secondary battery production
• Automotive
• Lumber inspection
• Factory automation
• Logistics

Unmatched Simplicity and Value

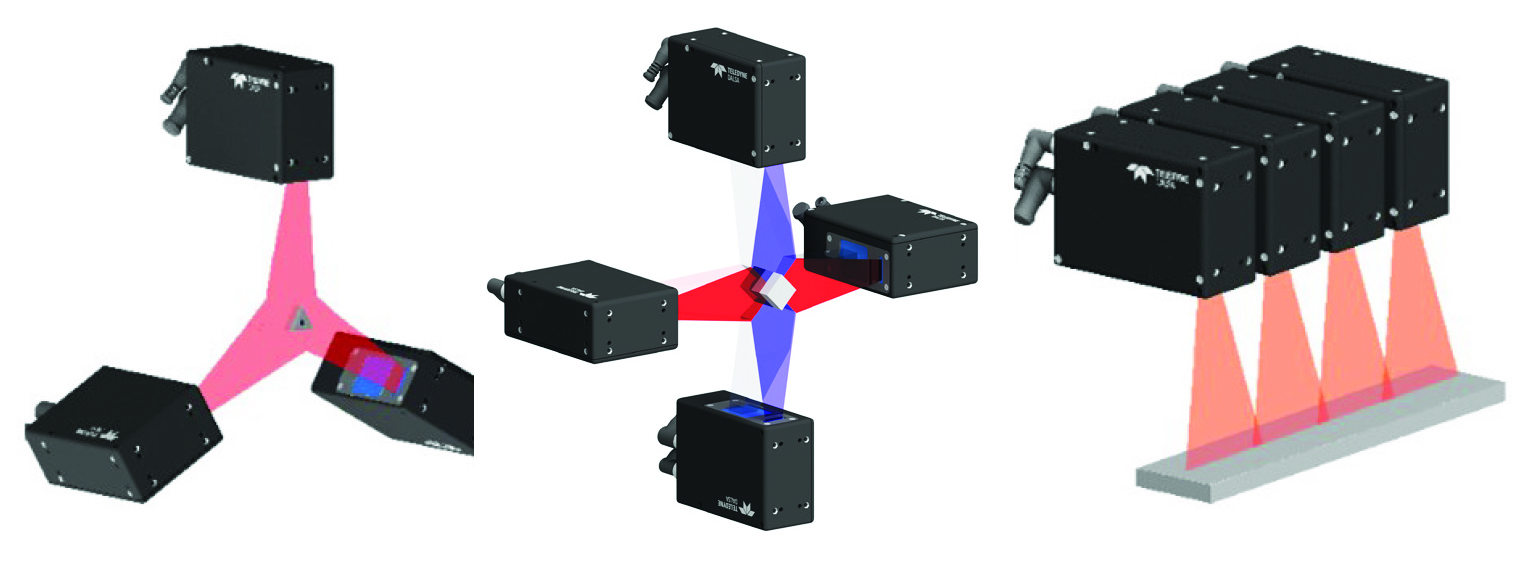

Featuring a 1,700mm horizontal field-of-view, the Z-Trak Express 1K5 model enables precise measurement and inspection of wide-body objects such as wooden planks, road surfaces, pallets, and automotive body parts, using a single sensor. It supports the integration of multiple sensors in various topologies, allowing for advanced measurement tasks such as:

• Measuring the thickness of moving parts

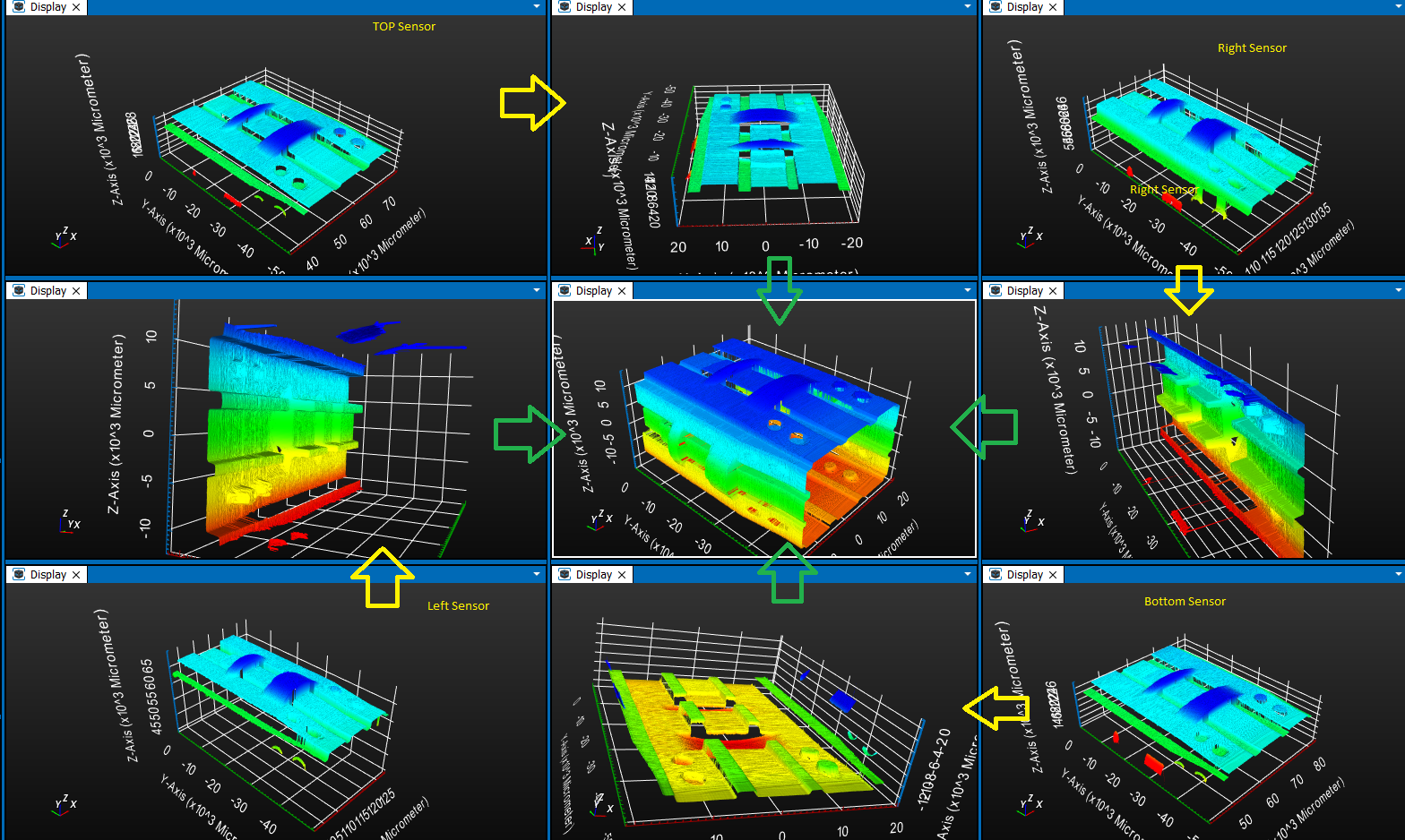

• Performing continuous 360° inspections
• Extending the horizontal field-of-view without compromising Z-resolution

To simplify deployment and reduce costs, the Z-Trak Express 1K5 synchronizes multiple sensors via the data cables and supports content-based triggering for enhanced flexibility.

Ready for Deployment

All Z-Trak profilers deliver micrometer-level measurements without the need for in-field calibration. The Z-Trak Express 1K5 accommodates a wide range of objects, regardless of size, shape, color, finish, or material composition. Key features include:

• Real-time, user-programmable profile enhancement functions
• Two-point HDR

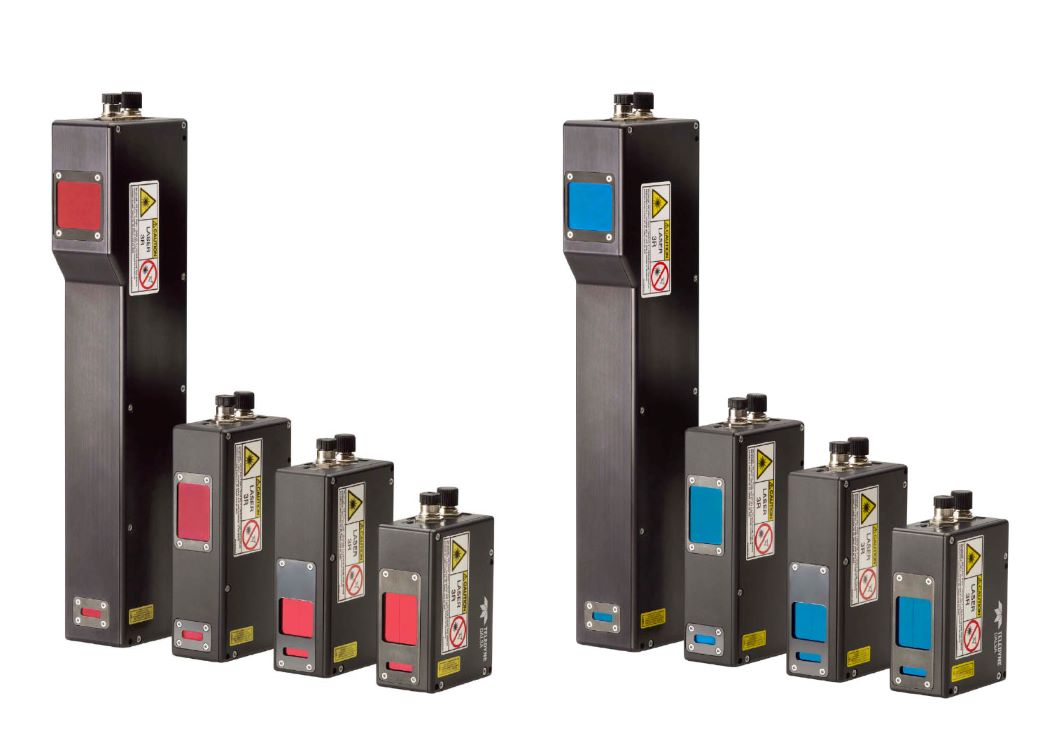

• Models with eye-safe red or blue lasers

Like all Z-Trak laser profilers, the Z-Trak Express 1K5 performs on-board processing without compromising the profile rate.

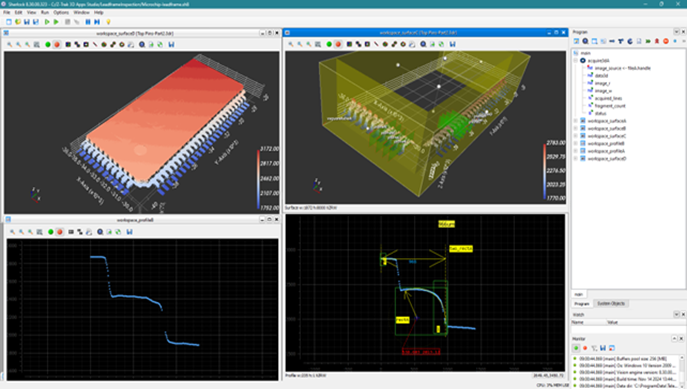

Example 1 Z-Trak 3D Apps Studio microchip lead inspection

Z-Trak 3D Apps Studio

Z-Trak™ 3D Apps Studio is a suite of software tools developed for in-line 3D machine vision applications. Designed to work with Teledyne DALSA’s Z-Trak family of laser profilers, it simplifies 3D measurement and inspection tasks on production lines. Capable of handling 3D scans of objects with varied surface types, sizes and geometric features, Z-Trak 3D Apps Studio is ideal for factory automation applications across a wide range of industries including electric vehicles (EV batteries, motor stators etc.), automotive, electronics, semiconductors, packaging, logistics, metal fabrication, lumber, and many more. Z-Trak 3D Apps Studio is accessible from Sherlock 8.30.

Learn more

Complete Software Suite

The Z-Trak Express 1K5 series is bundled with:

• Z-Trak™ 3D Apps Studio: A powerful suite of software tools for in-line measurement and inspection
• Z-Expert: A graphical configuration utility
• Sherlock™8: A field-proven rapid deployment platform for machine vision, enabling seamless communication with PLCs and other devices via industry-standard communication protocols such as TCP/IP, MODBUS®, ProfiNet® and more.
