To 22 μm

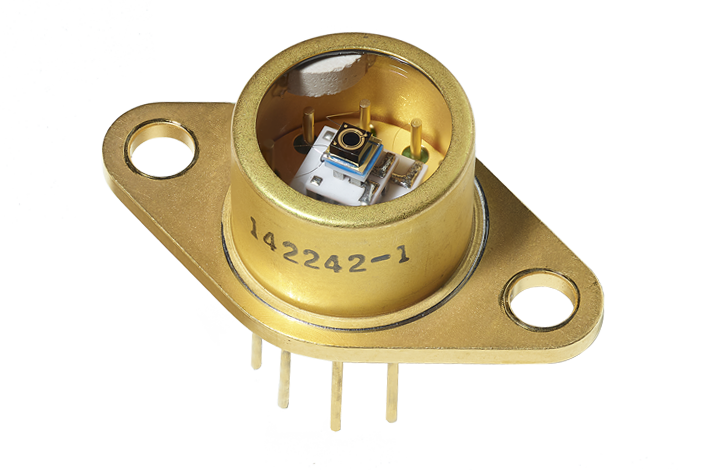

PC MCT Cryocooled
Our cryocooled PC MCT detectors (J508) offer cryogen-free operation using a compact mechanical cooler that maintains the detector at 77 K. With a long operational life (MTBF > 25,000 hours) and no need for liquid nitrogen, they provide high sensitivity and low noise in a maintenance-free package, making them ideal for portable systems and continuous-use applications.
Model Finder
Results:
Reset Filters
Showing 5 results
| Product | Wavelength Range | Sensor Size | Longwave Cutoff (µm) | Peak Wavelength | Operating Temperature | Status | Compare |
|---|---|---|---|---|---|---|---|
J15D12-J508-S01M-60J15D12-J508-S01M-60 |
LWIR | 1 | 12 | 11 | -196 | In Production Request Info |
|
J15D12-J508-S050U-60J15D12-J508-S050U-60 |
LWIR | 0.05 | 12 | 11 | -196 | In Production Request Info |
|
J15D12-J508-S100U-60J15D12-J508-S100U-60 |
LWIR | 0.1 | 12 | 11 | -196 | In Production Request Info |
|
J15D14-J508-S01M-60J15D14-J508-S01M-60 |
VLWIR | 1 | 13.5 | 13 | -196 | In Production Request Info |
|
J15D16-J508-S01M-60J15D16-J508-S01M-60 |
VLWIR | 1 | 16.6 | 14 | -196 | In Production Request Info |
|
Resources & Support
Below are assets shared by all models of this product family.
For model-specific assets, select an option in the Model Finder above.
A Guide to PC MCT Detectors
Infrared Detector Product Catalog
