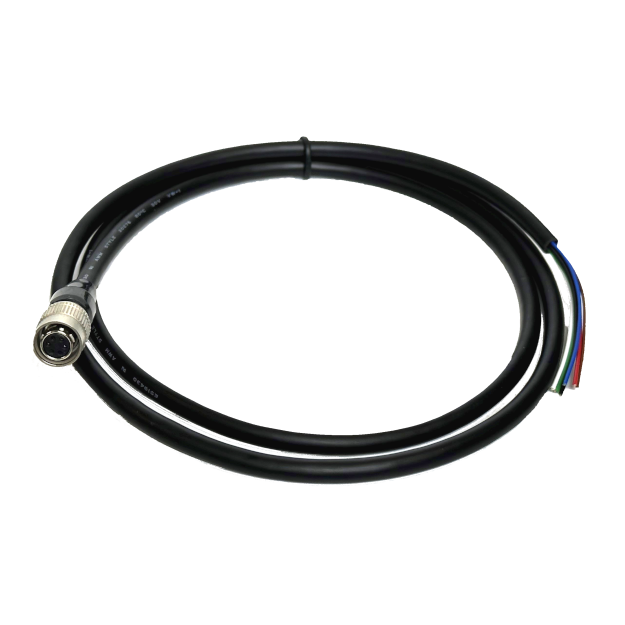

GPIO Cables with 6-pin Hirose HR10 Connector

GPIO Cables with 6-pin Hirose HR10 Connector

General Specifications

Number of pins	6
Connector Type	Hirose HR10 Circular Connector (HR10A-7P-6S)
Length	1 meter or 4.5 meters
Cable Diameter	5.0 mm

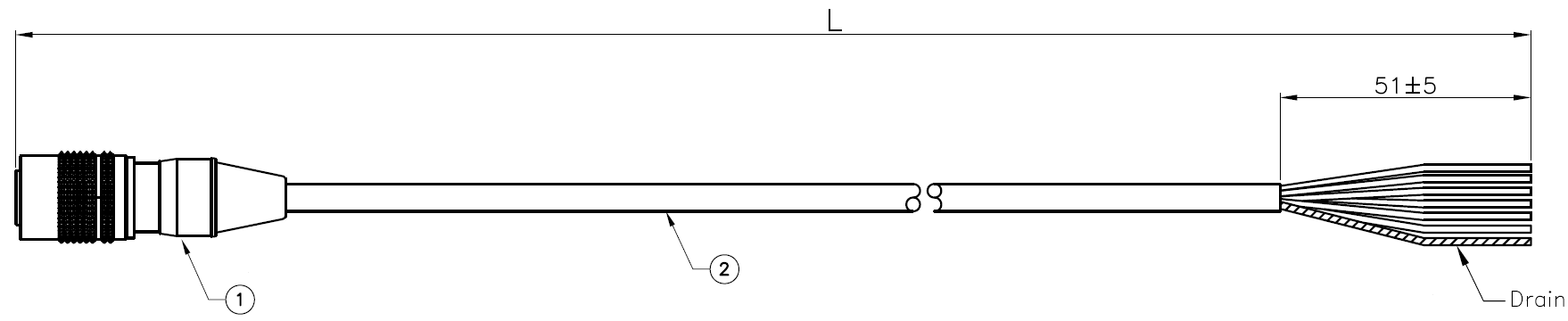

L = 1 meter or 4.5 meters

1 = Hirose 6 pin circular connector solder type

2 = UL20276 24AWG*6C+FAE 7/0.20 OD: 5.0 mm PVC Jacket, black

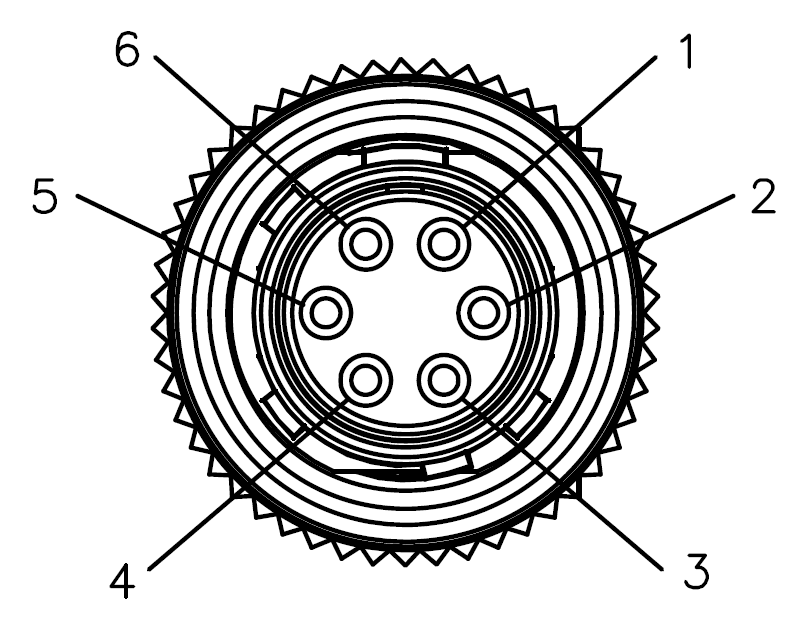

GPIO 6-pin Cable Connector

Pin	Color	Blackfly S / Forge	Blackfly
1	Green	Camera Power Input	Camera Power Input
		Non-isolated Input
2	Black	Opto-isolated Input
3	Red	Camera Power Output	Camera Power Output
		Non-isolated Input/Output
4	White	Opto-isolated Output
5	Blue	Opto-isolated Ground
6	Brown	Camera Power Ground
Shell	Drain

Model Finder

Product	Status	Compare	Buy
Hirose HR10 GPIO Cable, 6-pin, 1 m ACC-01-3009	Request Info		$37.50
Hirose HR10 GPIO Cable, 6-pin, 4.5 m ACC-01-3010	Request Info		$43.90
