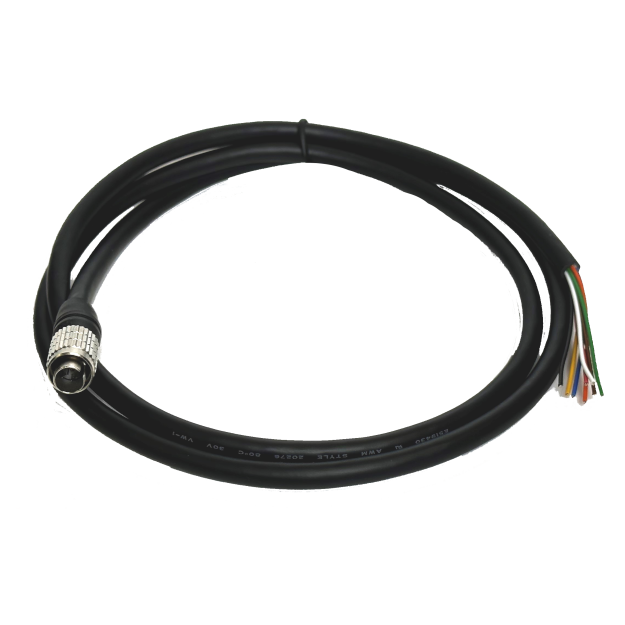

Câbles GPIO avec connecteur circulaire Hirose HR25 à 8 broches
General Specifications
| Number of pins | 8 |
|---|---|
| Connector Type | Hirose HR25 Circular Connector |
| Length | 1 meter or 4.5 meters |
| Cable Diameter | 5.2 mm |
L = 1 meter or 4.5 meters
1 = Hirose 8 pin circular connector solder type
2 = UL20276 24AWG*8C+FAB 16*5/0.10 OD: 5.2 mm PVC Jacket, black

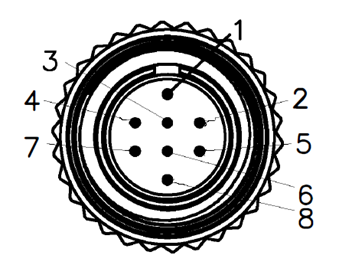

| Pin | Color | Flea3 / Grasshopper3 |
| 1 | Black | Opto-isolated Input |
| 2 | White | Opto-isolated Output |
| 3 | Red | Input / Output / Serial Transmit (TX) |
| 4 | Green | Input / Output / Serial Receive (RX) |
| 5 | Brown | Camera Power Ground |
| 6 | Blue | Opto-isolated Ground |
| 7 | Orange | Camera Power Input |
| 8 | Yellow | Camera Power Output |
Resources & Support
Below are assets shared by all models of this product family.
For model-specific assets, select an option in the Model Finder above.
ACC-01-3000 and ACC-01-3005 Datasheet
ACC-01-3000-2D-Drawing
ACC-01-3005-2D-Drawing
PCN-2023-004 GPIO Cable Change
