| Pin | Color | Ladybug6 / Ladybug5+ |
| 1 | Green | Opto-isolated Ground |
| 2 | Blue | Opto-isolated Input |
| 3 | Brown | Opto-isolated Output |
| 4 | Orange | Input / Output / GPS Data |
| 5 | White | Camera Power Output |
| 6 | Black | Camera Power Ground |
| 7 | Red | Camera Power Input |
| 8 | Red | Camera Power Output |
| 9 | Red | Camera Power Output |
| 10 | Green | Opto-isolated Ground |
| 11 | Yellow | Input / Output / PPS Signal |
| 12 | Black | Camera Power Output |

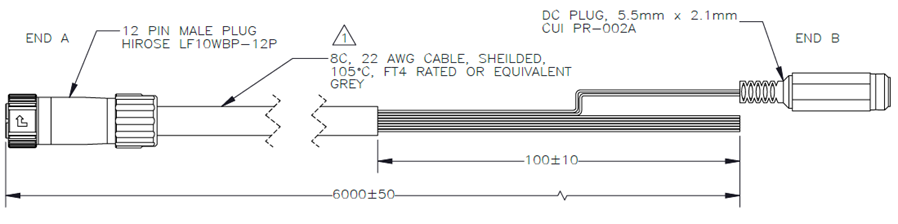

Specifications
- Part Number
- ACC-01-3012
- Connector Type
- Hirose LF Connector with DC Barrel Power Jack
- Dimensions
- Ø 7.0 mm
- Pins
- 12 pins
- Operating Temperature
- 80°C maximum
